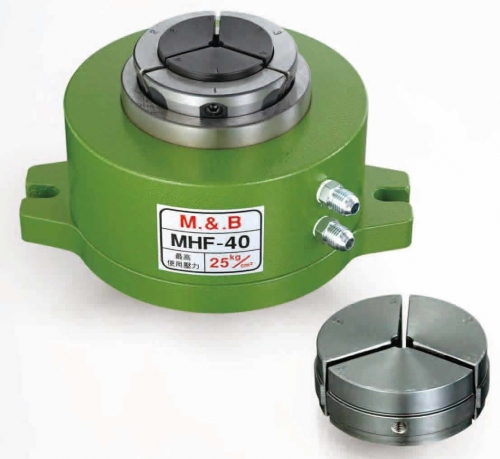

Fixed jaw-type hydraulic chuck
Feature
- Suitable for drilling machines, tapping machines, compound machines, machining centers, and multi-station processors
Produce
Specifications

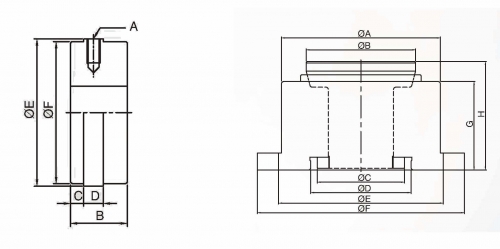

| Model | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| MHF-135 | 267 | 188 | 179 | 188 | 284 | 328 | 115.5 | 153.5 |
| MHF-120 | 234 | 168 | 158 | 160 | 240.5 | 290 | 107 | 135 |
| MHF-90 | 214 | 136 | 132.5 | 133 | 248 | 288 | 97 | 135.5 |
| MHF-70 | 198 | 137 | 109 | 125 | 205 | 258 | 110 | 135 |
| MHF-40 | 178 | 95 | 89 | 110 | 183 | 236 | 91 | 122 |
| MHF-25 | 123 | 68 | 68 | 80 | 128 | 170 | 86 | 100 |
| Model | Max. pressure | Dia.of feed hole |
Max. outside dia. of workpiece |
N.W. |
|---|---|---|---|---|
| MHF-135 | 25kg/cm² | Ø135mm | Ø135mm | 38kg |
| MHF-120 | 25kg/cm² | Ø120mm | Ø120mm | 35kg |
| MHF-90 | 25kg/cm² | Ø95mm | Ø90mm | 30kg |
| MHF-70 | 25kg/cm² | Ø68mm | Ø90mm | 22kg |
| MHF-40 | 25kg/cm² | Ø46mm | Ø50mm | 16.5kg |
| MHF-25 | 25kg/cm² | Ø26mm | Ø32mm | 8kg |
| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| M-135 | M8xP1.2.5x4 | 36 | 11 | 12 | 157.5 | 155 |
| M-120 | M6xP1.0x4 | 32 | 9 | 9 | 143 | 140 |
| M-90 | M6xP1.0x3 | 26 | 6 | 9 | 107.5 | 105 |
| M-70 | M6xP1.0x3 | 26 | 6 | 9 | 107.5 | 105 |
| M-40 | M6xP1.0x3 | 26 | 6 | 9 | 67.5 | 65 |
| M-25 | M5xP0.8x3 | 19 | 4 | 7 | 47.5 | 45 |
