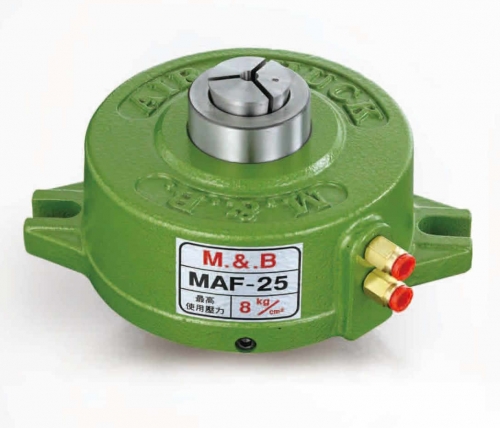

Fixed collet chuck
Feature
-
Suitable for CNC lathes and specialty machinery
Produce

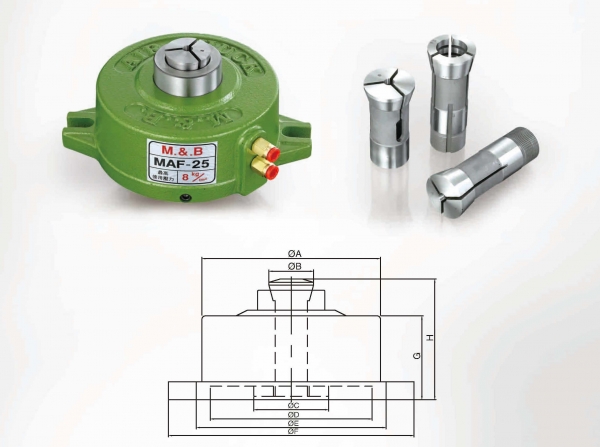

Specifications
| Model | A | B | C | D | E | F | G | H | Max. pressure | Through-hole diameter | N.W. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MAF-25 | 162 | 40 | 67 | 145 | 172 | 226 | 75 | 108 | 8kg/cm² | Ø26mm | 9.6kg |
| MAF-15 | 148 | 27 | 53 | 130 | 152 | 190 | 69 | 80 | 8kg/cm² | Ø15mm | 6.5kg |
