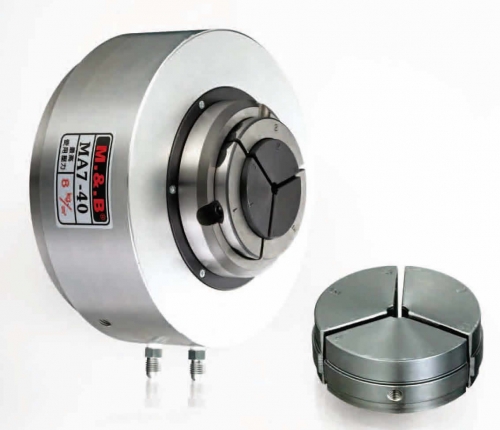

Rotary pneumatic chuck
Feature
-
Suitable for CNC lathes and specialty machinery
Produce

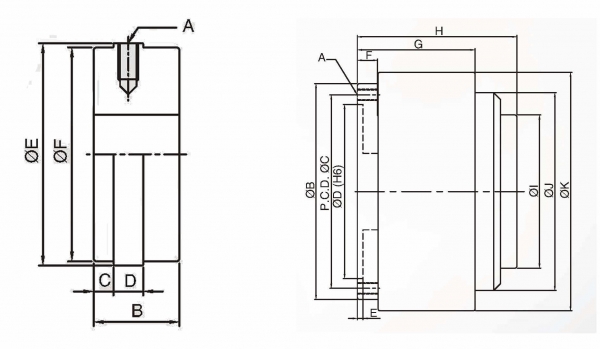

Specifications
| Model | A | B | C | D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MA7-70 | M10xP1.5x3 | 192 | 172 | 155 | 5 | 18 | 106 | 142 | 137 | 176 | 270 |
| MA7-40 | M10xP1.5x3 | 192 | 172 | 155 | 5 | 18 | 93 | 142 | 95 | 118 | 212 |
| MA5-25 | M8xP1.5x3 | 192 | 115 | 100 | 4 | 18 | 81 | 142 | 68 | 83 | 170 |
| Model | Max. pressure | Max.Speed | Dia. of feed hole |
Max. outside dia.
of workpiece
|
N.W. |
|---|---|---|---|---|---|
| MA7-70 | 8kg/cm² | 1400rpm | Ø68mm | Ø90mm | 23kg |
| MA7-40 | 8kg/cm² | 1600rpm | Ø46mm | Ø50mm | 15kg |
| MA5-25 | 8kg/cm² | 2000rpm | Ø26mm | Ø32mm | 7.5kg |
| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| M-70 | M6xP1.0x3 | 26 | 6 | 9 | 107.5 | 105 |
| M-40 | M6xP1.0x3 | 26 | 6 | 9 | 67.5 | 65 |
| M-25 | M5xP0.8x3 | 19 | 4 | 7 | 47.5 | 45 |
