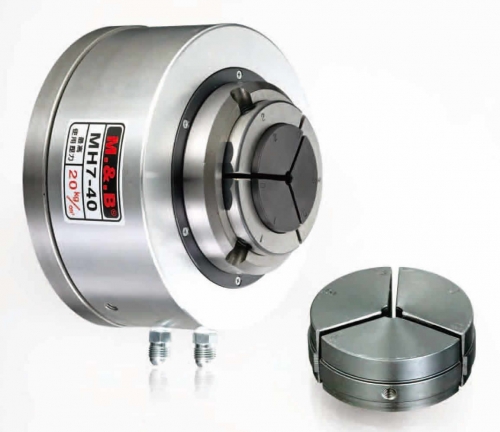

Rotary hydraulic chuck
Feature
-
Suitable for CNC lathes and specialty machinery
Produce
Specifications

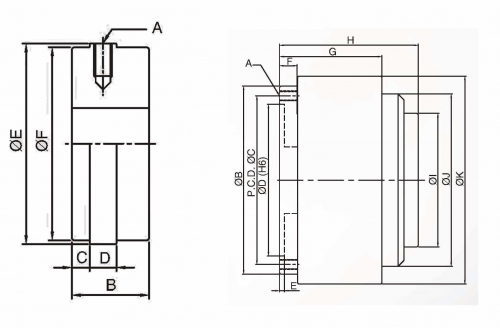

| Model | A | B | C | D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MH10-140 | M12xP1.75x6 | 275 | 250 | 230 | 6 | 22 | 136 | 171 | 193 | 255 | 310 |
| MH9-120 | M12xP1.75x3 | 235 | 210 | 190 | 6 | 20 | 120 | 160 | 168 | 230 | 275 |
| MH9-90 | M12xP1.75x3 | 235 | 210 | 190 | 6 | 20 | 111 | 150 | 137 | 178 | 232 |
| MH7-70 | M10xP1.5x3 | 192 | 172 | 155 | 5 | 18 | 106 | 142 | 137 | 176 | 212 |
| MH7-40 | M10xP1.5x3 | 192 | 172 | 155 | 5 | 18 | 93 | 126 | 95 | 118 | 190 |
| MH5-25 | M8xP1.25x3 | 192 | 115 | 100 | 4 | 18 | 81 | 104 | 68 | 83 | 139 |
| Model | Max. pressure | Max.Speed | Dia. of feed hole |
Max. outside dia.
of workpiece
|
N.W. |
|---|---|---|---|---|---|
| MH10-140 | 20kg/cm² | 700rpm | Ø141mm | Ø150mm | 40kg |
| MH9-120 | 20kg/cm² | 900rpm | Ø120mm | Ø120mm | 30.5kg |
| MH9-90 | 20kg/cm² | 1200rpm | Ø88mm | Ø90mm | 25kg |
| MH7-70 | 20kg/cm² | 1400rpm | Ø68mm | Ø90mm | 20kg |
| MH7-40 | 20kg/cm² | 1600rpm | Ø46mm | Ø50mm | 13.7kg |
| MH5-25 | 25kg/cm² | 2000rpm | Ø26mm | Ø32mm | 6kg |
| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| M-140 | M8xP1.2.5x6 | 34 | 8 | 12 | 162.5 | 160 |
| M-120 | M6xP1.0x4 | 32 | 9 | 9 | 143 | 140 |
| M-90 | M6xP1.0x3 | 26 | 6 | 9 | 107.5 | 105 |
| M-70 | M6xP1.0x3 | 26 | 6 | 9 | 107.5 | 105 |
| M-40 | M6xP1.0x3 | 26 | 6 | 9 | 67.5 | 65 |
| M-25 | M5xP0.8x3 | 19 | 4 | 7 | 47.5 | 45 |
