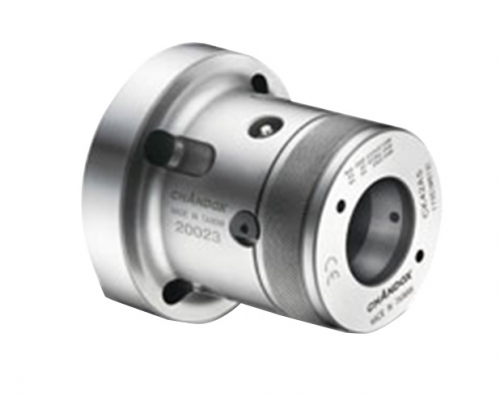

Collet chuck (nose-type CK)
Produce

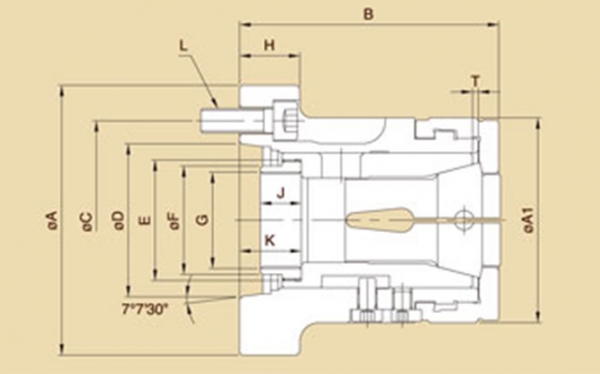

Specifications
|
SPEC. /MODEL
|
A
|
A1
|
B
|
C
|
D
|
E
|
F
|
G
max.
|
H
|
J
|
K
max.
|
K
min.
|
L
|
T
|
|
CK30A4
|
112
|
85
|
107.5
|
82.6
|
63.513
|
M50x1.5P
|
45
|
M40x1.5P
|
25
|
17
|
28
|
23
|
3-M10x1.5P
|
2.3
|
|
CK42A5
|
135
|
100
|
127
|
104.8
|
82.563
|
M66x1.5P
|
60
|
M55x2P
|
27
|
25
|
34
|
28
|
4-M10x1.5P
|
3.2
|
|
CK42A6
|
165
|
100
|
127
|
133.4
|
106.375
|
M66x1.5P
|
65.8
|
M60x2P
|
32
|
25
|
34
|
28
|
4-M12x1.75P
|
3.2
|
|
CK60A6
|
165
|
130
|
150
|
133.4
|
106.375
|
M90x1.5P
|
82
|
M75x2P
|
27
|
30
|
38
|
32
|
4-M12x1.75P
|
3.2
|
|
|
SPEC. /MODEL
|
Sleeve Stroke
(mm)
|
Max. Speed
r.p.m (min-1)
|
Matching Cylinder
|
Matching Collet Ref
|
Gripping Range
|
Max. Push. Force
kgf (KN)
|
Max. Gripping Force
kgf (KN)
|
|

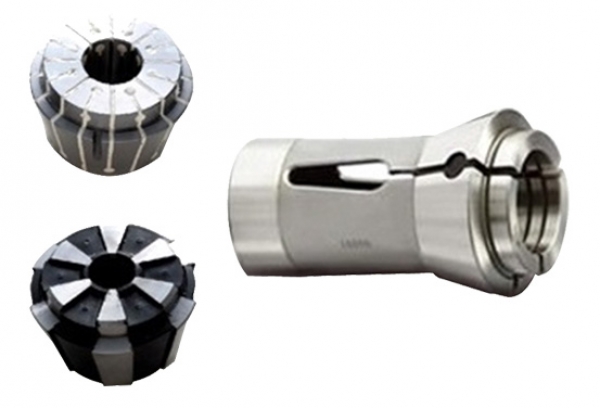

Spring Collet
|
Multibore Collet
|
Round
|
Hexagonal
|
Square
|
|
CK30A4
|
5
|
7000
|
P1036
|
163E
|
M-669
|
Ø3~Ø30
|
4~27
|
5~20
|
2040 (20)
|
4488 (44)
|
|
CK42A5
|
6
|
6000
|
P1246
|
173E
|
M-673
|
Ø3~Ø42
|
6~36
|
6~30
|
2550 (25)
|
5610 (55)
|
|
CK42A6
|
6
|
6000
|
P1552
|
173E
|
M-673
|
Ø3~Ø42
|
6~36
|
6~30
|
2550 (25)
|
5610 (55)
|
|
CK60A6
|
6
|
5000
|
P1875
|
185E
|
M-677
|
Ø4~Ø60
|
8~52
|
7~42
|
3060 (30)
|
6630 (65)
|
|
