Table lathe cylinder (high speed)
Feature
-
Hydraulic cylinder specially designed for table lathes.
-
Directly assembled on the end of the table lathe and does not require connecting boards, and thus the installation is simple and quick.
Produce

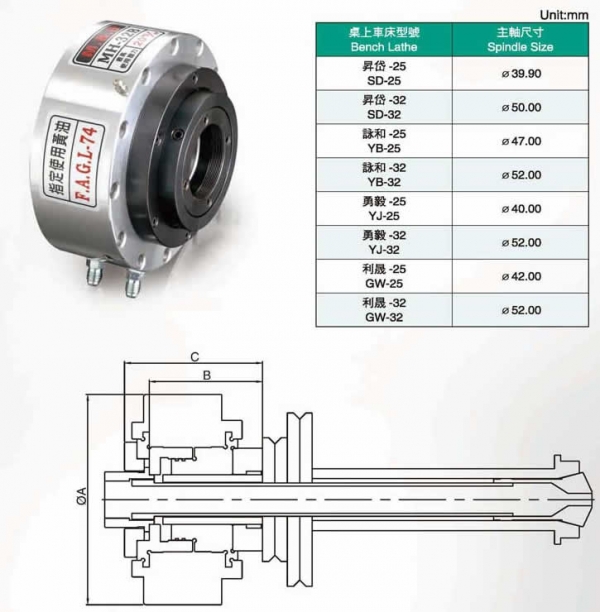

Specifications
| Model | Driving pressure | A | B | C | Max.Pressure | Max. Speed |
|---|---|---|---|---|---|---|
| MH-25B | Hydraulic | 170 | 91 | 118 | 20kg/cm² | 3500rpm |
| MH-32B | Hydraulic | 185 | 95 | 123 | 20kg/cm² | 3500rpm |
